Fiam · Tappers

Tappers

FIAM pneumatic tappers cover machine tapping from M8 to M16 in straight-grip and pistol-grip configurations, with automatic forward-reverse action for clean thread formation and tap withdrawal. Free speeds of 470–500 rpm are suited to standard thread pitch progressions. Tension-compression floating holders, available as accessories, compensate for spindle alignment variation to extend tap life in production fixtures and CNC pallets.

  • Tapping capacity M8 to M16 in straight and pistol-grip formats
  • Automatic forward-reverse action for clean thread formation and tap extraction
  • Free speeds 470–500 rpm matched to standard thread pitch requirements
  • Compatible with tension-compression accessories for floating chuck operation
  • Reduces tap breakage risk versus fixed-chuck tapping in production fixtures
Request a quote
Tappers
Products in this range

Tappers models.

Request a quote
ProductSKU / ModelKey specifications

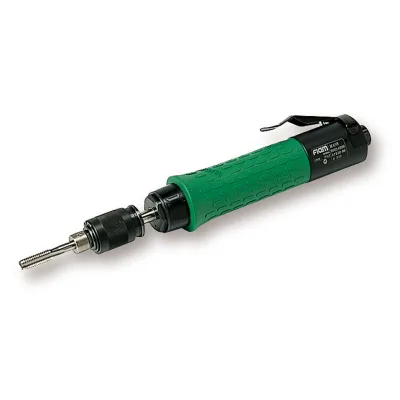

MAS8MAS8134610108
  • Handle type: STRAIGHT
  • Tapping capacity: 8
  • Free speed forward (rpm): 500
MAS8BMAS8B134612108
  • Handle type: STRAIGHT
  • Tapping capacity: 8
  • Free speed forward (rpm): 500
MAS6MAS6134610106
  • Handle type: STRAIGHT
  • Tapping capacity: 6
  • Free speed forward (rpm): 1000
MAS6BMAS6B134612106
  • Handle type: STRAIGHT
  • Tapping capacity: 6
  • Free speed forward (rpm): 1000
MAY12MAY12136309016
  • Handle type: STRAIGHT
  • Tapping capacity: 12
  • Free speed forward (rpm): 220
MAY12BMAY12B136309031
  • Handle type: STRAIGHT
  • Tapping capacity: 12
  • Free speed forward (rpm): 220
MAY10MAY10136309028
  • Handle type: STRAIGHT
  • Tapping capacity: 10
  • Free speed forward (rpm): 450
MAY10BMAY10B136309026
  • Handle type: STRAIGHT
  • Tapping capacity: 10
  • Free speed forward (rpm): 450
MASE8PMASE8P134610518
  • Handle type: PISTOL
  • Tapping capacity: 8
  • Free speed forward (rpm): 500
MASE8PBMASE8PB134612518
  • Handle type: PISTOL
  • Tapping capacity: 8
  • Free speed forward (rpm): 500
MASE6PMASE6P134610516
  • Handle type: PISTOL
  • Tapping capacity: 6
  • Free speed forward (rpm): 1000
MASE6PBMASE6PB134612516
  • Handle type: PISTOL
  • Tapping capacity: 6
  • Free speed forward (rpm): 1000
MAY12PMAY12P136310512
  • Handle type: PISTOL
  • Tapping capacity: 12
  • Free speed forward (rpm): 220
MAY12PBMAY12PB136312512
  • Handle type: PISTOL
  • Tapping capacity: 12
  • Free speed forward (rpm): 220
MAY10PMAY10P136310510
  • Handle type: PISTOL
  • Tapping capacity: 10
  • Free speed forward (rpm): 450
MAY10PBMAY10PB136312510
  • Handle type: PISTOL
  • Tapping capacity: 10
  • Free speed forward (rpm): 450
MAO18PMAO18P137210118
  • Handle type: PISTOL
  • Tapping capacity: 18
  • Free speed forward (rpm): 140
MAO16PMAO16P137210116
  • Handle type: PISTOL
  • Tapping capacity: 16
  • Free speed forward (rpm): 470
