Tecna · Aluminium Balancers

Aluminium Balancers

The Tecna Aluminium Balancer range is the core of the Tecna spring balancer portfolio, 70 models covering load capacities from 0.4 kg to 180 kg with wire stroke up to 3,000 mm. The rugged cast aluminium body and stainless steel cable give these balancers the durability for continuous production use across assembly, welding, and general manufacturing. An adjustable capacity setting, auxiliary safety suspension, and adjustable stroke-limiting device make each model adaptable to a wide range of tool weights and workstation layouts.

  • 70 models covering 0.4–180 kg load capacity for light to heavy tools
  • Wire stroke up to 3,000 mm for flexible workstation reach
  • Rugged cast aluminium body with stainless steel cable for long service life
  • Adjustable capacity and stroke-limiting device for flexible setup
  • Auxiliary safety suspension as standard for added operator protection
Request a quote
aluminium balancer
Products in this range

Aluminium Balancers models.

Request a quote
ProductSKU / ModelKey specifications
9311 BALANCER CAPACITY 0,4 - 1 kg STROKE 1600 mm9311 BALANCER CAPACITY 0,4 - 1 kg STROKE 1600 mm9311
  • Capacity: 0.4 - 1 kg
  • Stroke: 1600 mm
9312 BALANCER CAPACITY 1 - 2 kg STROKE 1600 mm9312 BALANCER CAPACITY 1 - 2 kg STROKE 1600 mm9312
  • Capacity: 1 - 2 kg
  • Stroke: 1600 mm
9313 BALANCER CAPACITY 2 - 3 kg STROKE 1600 mm9313 BALANCER CAPACITY 2 - 3 kg STROKE 1600 mm9313
  • Capacity: 2 - 3 kg
  • Stroke: 1600 mm
9320 BALANCER CAPACITY 1 - 2,5 kg STROKE 2000 mm9320 BALANCER CAPACITY 1 - 2,5 kg STROKE 2000 mm9320
  • Capacity: 1 - 2.5 kg
  • Stroke: 2000 mm
9321 BALANCER CAPACITY 2 - 4 kg STROKE 2000 mm9321 BALANCER CAPACITY 2 - 4 kg STROKE 2000 mm9321
  • Capacity: 2 - 4 kg
  • Stroke: 2000 mm
9322 BALANCER CAPACITY 4 - 6 kg STROKE 2000 mm9322 BALANCER CAPACITY 4 - 6 kg STROKE 2000 mm9322
  • Capacity: 4 - 6 kg
  • Stroke: 2000 mm
9323 BALANCER CAPACITY 6 - 8 kg STROKE 2000 mm9323 BALANCER CAPACITY 6 - 8 kg STROKE 2000 mm9323
  • Capacity: 6 - 8 kg
  • Stroke: 2000 mm
9336 BALANCER CAPACITY 2 - 4 kg STROKE 2500 mm9336 BALANCER CAPACITY 2 - 4 kg STROKE 2500 mm9336
  • Capacity: 2 - 4 kg
  • Stroke: 2500 mm
9337 BALANCER CAPACITY 4 - 6 kg STROKE 2500 mm9337 BALANCER CAPACITY 4 - 6 kg STROKE 2500 mm9337
  • Capacity: 4 - 6 kg
  • Stroke: 2500 mm
9338 BALANCER CAPACITY 6 - 8 kg STROKE 2500 mm9338 BALANCER CAPACITY 6 - 8 kg STROKE 2500 mm9338
  • Capacity: 6 - 8 kg
  • Stroke: 2500 mm
9339 BALANCER CAPACITY 8 - 10 kg STROKE 2500 mm9339 BALANCER CAPACITY 8 - 10 kg STROKE 2500 mm9339
  • Capacity: 8 - 10 kg
  • Stroke: 2500 mm

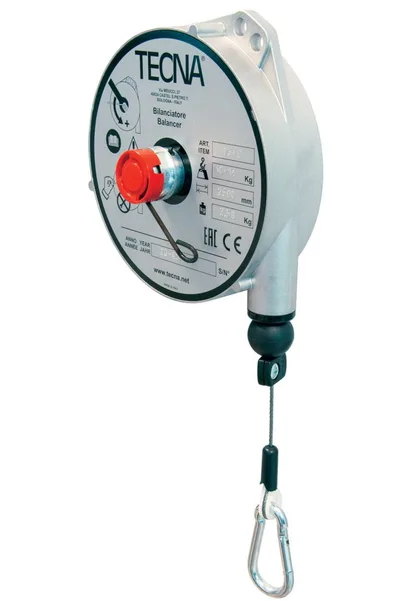

9340 BALANCER CAPACITY 10 - 14 kg STROKE 2500 mm9340 BALANCER CAPACITY 10 - 14 kg STROKE 2500 mm9340
  • Capacity: 10 - 14 kg
  • Stroke: 2500 mm
9346 BALANCER CAPACITY 2 - 4 kg STROKE 2500 mm9346 BALANCER CAPACITY 2 - 4 kg STROKE 2500 mm9346
  • Capacity: 2 - 4 kg
  • Stroke: 2500 mm
9347 BALANCER CAPACITY 4 - 6 kg STROKE 2500 mm9347 BALANCER CAPACITY 4 - 6 kg STROKE 2500 mm9347
  • Capacity: 4 - 6 kg
  • Stroke: 2500 mm
9348 BALANCER CAPACITY 6 - 8 kg STROKE 2500 mm9348 BALANCER CAPACITY 6 - 8 kg STROKE 2500 mm9348
  • Capacity: 6 - 8 kg
  • Stroke: 2500 mm
9349 BALANCER CAPACITY 8 - 10 kg STROKE 2500 mm9349 BALANCER CAPACITY 8 - 10 kg STROKE 2500 mm9349
  • Capacity: 8 - 10 kg
  • Stroke: 2500 mm
9350 BALANCER CAPACITY 10-14 kg STROKE 2500 mm9350 BALANCER CAPACITY 10-14 kg STROKE 2500 mm9350
  • Capacity: 10-14 kg
  • Stroke: 2500 mm
9354 BALANCER CAPACITY 4 - 7 kg STROKE 2000 mm9354 BALANCER CAPACITY 4 - 7 kg STROKE 2000 mm9354
  • Capacity: 4 - 7 kg
  • Stroke: 2000 mm
9355 BALANCER CAPACITY 7 - 10 kg STROKE 2000 mm9355 BALANCER CAPACITY 7 - 10 kg STROKE 2000 mm9355
  • Capacity: 7 - 10 kg
  • Stroke: 2000 mm
9356 BALANCER CAPACITY 10 - 14 kg STROKE 2000 mm9356 BALANCER CAPACITY 10 - 14 kg STROKE 2000 mm9356
  • Capacity: 10 - 14 kg
  • Stroke: 2000 mm
9357 BALANCER CAPACITY 14 - 18 kg STROKE 2000 mm9357 BALANCER CAPACITY 14 - 18 kg STROKE 2000 mm9357
  • Capacity: 14 - 18 kg
  • Stroke: 2000 mm
9358 BALANCER CAPACITY 18 - 22 kg STROKE 2000 mm9358 BALANCER CAPACITY 18 - 22 kg STROKE 2000 mm9358
  • Capacity: 18 - 22 kg
  • Stroke: 2000 mm
9359 BALANCER CAPACITY 22 - 25 kg STROKE 2000 mm9359 BALANCER CAPACITY 22 - 25 kg STROKE 2000 mm9359
  • Capacity: 22 - 25 kg
  • Stroke: 2000 mm
9354.F BALANCER CAPACITY 4 - 7 kg STROKE 2000 mm9354.F BALANCER CAPACITY 4 - 7 kg STROKE 2000 mm9354.F
  • Capacity: 4 - 7 kg
  • Stroke: 2000 mm
9355.F BALANCER CAPACITY 7 - 10 kg STROKE 2000 mm9355.F BALANCER CAPACITY 7 - 10 kg STROKE 2000 mm9355.F
  • Capacity: 7 - 10 kg
  • Stroke: 2000 mm
9356.F BALANCER CAPACITY 10 - 14 kg STROKE 2000 mm9356.F BALANCER CAPACITY 10 - 14 kg STROKE 2000 mm9356.F
  • Capacity: 10 - 14 kg
  • Stroke: 2000 mm
9357.F BALANCER CAPACITY 14 - 18 kg STROKE 2000 mm9357.F BALANCER CAPACITY 14 - 18 kg STROKE 2000 mm9357.F
  • Capacity: 14 - 18 kg
  • Stroke: 2000 mm
9358.F BALANCER CAPACITY 18 - 22 kg STROKE 2000 mm9358.F BALANCER CAPACITY 18 - 22 kg STROKE 2000 mm9358.F
  • Capacity: 18 - 22 kg
  • Stroke: 2000 mm
9359.F BALANCER CAPACITY 22 - 25 kg STROKE 2000 mm9359.F BALANCER CAPACITY 22 - 25 kg STROKE 2000 mm9359.F
  • Capacity: 22 - 25 kg
  • Stroke: 2000 mm
9361 BALANCER CAPACITY 10 - 15kg STROKE 2000 mm9361 BALANCER CAPACITY 10 - 15kg STROKE 2000 mm9361
  • Capacity: 10 - 15kg
  • Stroke: 2000 mm
9362 BALANCER CAPACITY 15 - 20 kg STROKE 2000 mm9362 BALANCER CAPACITY 15 - 20 kg STROKE 2000 mm9362
  • Capacity: 15 - 20 kg
  • Stroke: 2000 mm
9363 BALANCER CAPACITY 20 - 25 kg STROKE 2000 mm9363 BALANCER CAPACITY 20 - 25 kg STROKE 2000 mm9363
  • Capacity: 20 - 25 kg
  • Stroke: 2000 mm
9364 BALANCER CAPACITY 25 - 30 kg STROKE 2000 mm9364 BALANCER CAPACITY 25 - 30 kg STROKE 2000 mm9364
  • Capacity: 25 - 30 kg
  • Stroke: 2000 mm
9365 BALANCER CAPACITY 30 - 35 kg STROKE 2000 mm9365 BALANCER CAPACITY 30 - 35 kg STROKE 2000 mm9365
  • Capacity: 30 - 35 kg
  • Stroke: 2000 mm
9366 BALANCER CAPACITY 35 - 45 kg STROKE 2000 mm9366 BALANCER CAPACITY 35 - 45 kg STROKE 2000 mm9366
  • Capacity: 35 - 45 kg
  • Stroke: 2000 mm
9367 BALANCER CAPACITY 45 - 55 kg STROKE 2000 mm9367 BALANCER CAPACITY 45 - 55 kg STROKE 2000 mm9367
  • Capacity: 45 - 55 kg
  • Stroke: 2000 mm
9368 BALANCER CAPACITY 55 - 65 kg STROKE 2000 mm9368 BALANCER CAPACITY 55 - 65 kg STROKE 2000 mm9368
  • Capacity: 55 - 65 kg
  • Stroke: 2000 mm
9369 BALANCER CAPACITY 65 - 75 kg STROKE 2000 mm9369 BALANCER CAPACITY 65 - 75 kg STROKE 2000 mm9369
  • Capacity: 65 - 75 kg
  • Stroke: 2000 mm
9370 BALANCER CAPACITY 75 - 90 kg STROKE 2000 mm9370 BALANCER CAPACITY 75 - 90 kg STROKE 2000 mm9370
  • Capacity: 75 - 90 kg
  • Stroke: 2000 mm
9371 BALANCER CAPACITY 90 - 105 kg STROKE 2000 mm9371 BALANCER CAPACITY 90 - 105 kg STROKE 2000 mm9371
  • Capacity: 90 - 105 kg
  • Stroke: 2000 mm
9401 BALANCER CAPACITY 15 - 20 kg STROKE 2500 mm9401 BALANCER CAPACITY 15 - 20 kg STROKE 2500 mm9401
  • Capacity: 15 - 20 kg
  • Stroke: 2500 mm
9402 BALANCER CAPACITY 20 - 30 kg STROKE 2500 mm9402 BALANCER CAPACITY 20 - 30 kg STROKE 2500 mm9402
  • Capacity: 20 - 30 kg
  • Stroke: 2500 mm
9403 BALANCER CAPACITY 30 - 40 kg STROKE 2500 mm9403 BALANCER CAPACITY 30 - 40 kg STROKE 2500 mm9403
  • Capacity: 30 - 40 kg
  • Stroke: 2500 mm
9404 BALANCER CAPACITY 40 - 50 kg STROKE 2500 mm9404 BALANCER CAPACITY 40 - 50 kg STROKE 2500 mm9404
  • Capacity: 40 - 50 kg
  • Stroke: 2500 mm
9405 BALANCER CAPACITY 50 - 60 kg STROKE 2500 mm9405 BALANCER CAPACITY 50 - 60 kg STROKE 2500 mm9405
  • Capacity: 50 - 60 kg
  • Stroke: 2500 mm
9411 BALANCER CAPACITY 60 - 70 kg STROKE 2500 mm9411 BALANCER CAPACITY 60 - 70 kg STROKE 2500 mm9411
  • Capacity: 60 - 70 kg
  • Stroke: 2500 mm
9412 BALANCER CAPACITY 70 - 80 kg STROKE 2500 mm9412 BALANCER CAPACITY 70 - 80 kg STROKE 2500 mm9412
  • Capacity: 70 - 80 kg
  • Stroke: 2500 mm
9413 BALANCER CAPACITY 80 - 90 kg STROKE 2500 mm9413 BALANCER CAPACITY 80 - 90 kg STROKE 2500 mm9413
  • Capacity: 80 - 90 kg
  • Stroke: 2500 mm
9414 BALANCER CAPACITY 90 - 100 kg STROKE 2500 mm9414 BALANCER CAPACITY 90 - 100 kg STROKE 2500 mm9414
  • Capacity: 90 - 100 kg
  • Stroke: 2500 mm
9422 BALANCER CAPACITY 100 - 120 kg STROKE 2500 mm9422 BALANCER CAPACITY 100 - 120 kg STROKE 2500 mm9422
  • Capacity: 100 - 120 kg
  • Stroke: 2500 mm
9423 BALANCER CAPACITY 120 - 140 kg STROKE 2500 mm9423 BALANCER CAPACITY 120 - 140 kg STROKE 2500 mm9423
  • Capacity: 120 - 140 kg
  • Stroke: 2500 mm
9424 BALANCER CAPACITY 130 - 150 kg STROKE 2500 mm9424 BALANCER CAPACITY 130 - 150 kg STROKE 2500 mm9424
  • Capacity: 130 - 150 kg
  • Stroke: 2500 mm
9425 BALANCER CAPACITY 140 - 160 kg STROKE 2500 mm9425 BALANCER CAPACITY 140 - 160 kg STROKE 2500 mm9425
  • Capacity: 140 - 160 kg
  • Stroke: 2500 mm
9426 BALANCER CAPACITY 160 - 180 kg STROKE 2500 mm9426 BALANCER CAPACITY 160 - 180 kg STROKE 2500 mm9426
  • Capacity: 160 - 180 kg
  • Stroke: 2500 mm
9431 BALANCER CAPACITY 15 - 20 kg STROKE 3000 mm9431 BALANCER CAPACITY 15 - 20 kg STROKE 3000 mm9431
  • Capacity: 15 - 20 kg
  • Stroke: 3000 mm
9432 BALANCER CAPACITY 20 - 25 kg STROKE 3000 mm9432 BALANCER CAPACITY 20 - 25 kg STROKE 3000 mm9432
  • Capacity: 20 - 25 kg
  • Stroke: 3000 mm
9433 BALANCER CAPACITY 25 - 35 kg STROKE 3000 mm9433 BALANCER CAPACITY 25 - 35 kg STROKE 3000 mm9433
  • Capacity: 25 - 35 kg
  • Stroke: 3000 mm
9434 BALANCER CAPACITY 35 - 45 kg STROKE 3000 mm9434 BALANCER CAPACITY 35 - 45 kg STROKE 3000 mm9434
  • Capacity: 35 - 45 kg
  • Stroke: 3000 mm
9435 BALANCER CAPACITY 40 - 50 kg STROKE 3000 mm9435 BALANCER CAPACITY 40 - 50 kg STROKE 3000 mm9435
  • Capacity: 40 - 50 kg
  • Stroke: 3000 mm
9436 BALANCER CAPACITY 50 - 60 kg STROKE 3000 mm9436 BALANCER CAPACITY 50 - 60 kg STROKE 3000 mm9436
  • Capacity: 50 - 60 kg
  • Stroke: 3000 mm
9441 BALANCER CAPACITY 60 - 70 kg STROKE 3000 mm9441 BALANCER CAPACITY 60 - 70 kg STROKE 3000 mm9441
  • Capacity: 60 - 70 kg
  • Stroke: 3000 mm
9442 BALANCER CAPACITY 70 - 80 kg STROKE 3000 mm9442 BALANCER CAPACITY 70 - 80 kg STROKE 3000 mm9442
  • Capacity: 70 - 80 kg
  • Stroke: 3000 mm
9443 BALANCER CAPACITY 80 - 90 kg STROKE 3000 mm9443 BALANCER CAPACITY 80 - 90 kg STROKE 3000 mm9443
  • Capacity: 80 - 90 kg
  • Stroke: 3000 mm
9444 BALANCER CAPACITY 80 - 100 kg STROKE 3000 mm9444 BALANCER CAPACITY 80 - 100 kg STROKE 3000 mm9444
  • Capacity: 80 - 100 kg
  • Stroke: 3000 mm
9451 BALANCER CAPACITY 100 - 115 kg STROKE 3000 mm9451 BALANCER CAPACITY 100 - 115 kg STROKE 3000 mm9451
  • Capacity: 100 - 115 kg
  • Stroke: 3000 mm
9452 BALANCER CAPACITY 115 - 130 Kg STROKE 3000 mm9452 BALANCER CAPACITY 115 - 130 Kg STROKE 3000 mm9452
  • Capacity: 115 - 130 Kg
  • Stroke: 3000 mm
9453 BALANCER CAPACITY 130 - 140 kg STROKE 3000 mm9453 BALANCER CAPACITY 130 - 140 kg STROKE 3000 mm9453
  • Capacity: 130 - 140 kg
  • Stroke: 3000 mm
9454 BALANCER CAPACITY 140 - 150 kg STROKE 3000 mm9454 BALANCER CAPACITY 140 - 150 kg STROKE 3000 mm9454
  • Capacity: 140 - 150 kg
  • Stroke: 3000 mm
9455 BALANCER CAPACITY 150 - 160 kg STROKE 3000 mm9455 BALANCER CAPACITY 150 - 160 kg STROKE 3000 mm9455
  • Capacity: 150 - 160 kg
  • Stroke: 3000 mm
9456 BALANCER CAPACITY 160 - 180 kg STROKE 3000 mm9456 BALANCER CAPACITY 160 - 180 kg STROKE 3000 mm9456
  • Capacity: 160 - 180 kg
  • Stroke: 3000 mm
