Tecna · ATEX Balancers

ATEX Balancers

Tecna ATEX Balancers are certified for use in potentially explosive atmospheres, Zone 1 and Zone 2 hazardous area classifications, making them the correct choice for tool suspension in petrochemical, oil and gas, pharmaceutical, and other environments where ignition sources must be controlled. Forty-three models are available, with wire stroke from 2,000 to 2,700 mm. Each unit is constructed and certified to the ATEX directive, providing documented compliance for hazardous area installation alongside the productivity benefits of spring-balanced tool suspension.

  • ATEX certified for Zone 1 and Zone 2 hazardous area installations
  • Forty-three models with stroke from 2,000–2,700 mm
  • Suitable for petrochemical, oil and gas, and pharmaceutical environments
  • Eliminates ignition risk from tool suspension in explosive atmospheres
  • Documented ATEX compliance for audited hazardous area operations
Request a quote
atex balancer
Products in this range

ATEX Balancers models.

Request a quote
ProductSKU / ModelKey specifications
9354AX BALANCER CAPACITY 4 - 7 kg STROKE 2000 mm9354AX BALANCER CAPACITY 4 - 7 kg STROKE 2000 mm9354AX
  • Capacity: 4 - 7 kg
  • Stroke: 2000 mm
9355AX BALANCER CAPACITY 7 - 10 kg STROKE 2000 mm9355AX BALANCER CAPACITY 7 - 10 kg STROKE 2000 mm9355AX
  • Capacity: 7 - 10 kg
  • Stroke: 2000 mm
9356AX BALANCER CAPACITY 10 - 14 kg STROKE 2000 mm9356AX BALANCER CAPACITY 10 - 14 kg STROKE 2000 mm9356AX
  • Capacity: 10 - 14 kg
  • Stroke: 2000 mm
9357AX BALANCER CAPACITY 14 - 18 kg STROKE 2000 mm9357AX BALANCER CAPACITY 14 - 18 kg STROKE 2000 mm9357AX
  • Capacity: 14 - 18 kg
  • Stroke: 2000 mm
9358AX BALANCER CAPACITY 18 - 22 kg STROKE 2000 mm9358AX BALANCER CAPACITY 18 - 22 kg STROKE 2000 mm9358AX
  • Capacity: 18 - 22 kg
  • Stroke: 2000 mm
9359AX BALANCER CAPACITY 22 - 25 kg STROKE 2000 mm9359AX BALANCER CAPACITY 22 - 25 kg STROKE 2000 mm9359AX
  • Capacity: 22 - 25 kg
  • Stroke: 2000 mm
9502AX BALANCER CAPACITY 20 - 30 kg STROKE 2100 mm9502AX BALANCER CAPACITY 20 - 30 kg STROKE 2100 mm9502AX
  • Capacity: 20 - 30 kg
  • Stroke: 2100 mm
9503AX BALANCER CAPACITY 30 - 40 kg STROKE 2100 mm9503AX BALANCER CAPACITY 30 - 40 kg STROKE 2100 mm9503AX
  • Capacity: 30 - 40 kg
  • Stroke: 2100 mm
9504AX BALANCER CAPACITY 40 - 50 kg STROKE 2100 mm9504AX BALANCER CAPACITY 40 - 50 kg STROKE 2100 mm9504AX
  • Capacity: 40 - 50 kg
  • Stroke: 2100 mm
9505AX BALANCER CAPACITY 50 - 60 kg STROKE 2100 mm9505AX BALANCER CAPACITY 50 - 60 kg STROKE 2100 mm9505AX
  • Capacity: 50 - 60 kg
  • Stroke: 2100 mm
9506AX BALANCER CAPACITY 60 - 70 kg STROKE 2100 mm9506AX BALANCER CAPACITY 60 - 70 kg STROKE 2100 mm9506AX
  • Capacity: 60 - 70 kg
  • Stroke: 2100 mm
9507AX BALANCER CAPACITY 70 - 80 kg STROKE 2100 mm9507AX BALANCER CAPACITY 70 - 80 kg STROKE 2100 mm9507AX
  • Capacity: 70 - 80 kg
  • Stroke: 2100 mm
9508AX BALANCER CAPACITY 80 - 90 kg STROKE 2100 mm9508AX BALANCER CAPACITY 80 - 90 kg STROKE 2100 mm9508AX
  • Capacity: 80 - 90 kg
  • Stroke: 2100 mm
9509AX BALANCER CAPACITY 90 - 100 kg STROKE 2100 m9509AX BALANCER CAPACITY 90 - 100 kg STROKE 2100 m9509AX
  • Capacity: 90 - 100 kg
9520AX BALANCER CAPACITY 12 - 20 kg STROKE 2700 mm9520AX BALANCER CAPACITY 12 - 20 kg STROKE 2700 mm9520AX
  • Capacity: 12 - 20 kg
  • Stroke: 2700 mm
9521AX BALANCER CAPACITY 20 - 30 kg STROKE 2700 mm9521AX BALANCER CAPACITY 20 - 30 kg STROKE 2700 mm9521AX
  • Capacity: 20 - 30 kg
  • Stroke: 2700 mm
9522AX BALANCER CAPACITY 30 - 40 kg STROKE 2700 mm9522AX BALANCER CAPACITY 30 - 40 kg STROKE 2700 mm9522AX
  • Capacity: 30 - 40 kg
  • Stroke: 2700 mm
9523AX BALANCER CAPACITY 40 - 50 kg STROKE 2700 mm9523AX BALANCER CAPACITY 40 - 50 kg STROKE 2700 mm9523AX
  • Capacity: 40 - 50 kg
  • Stroke: 2700 mm
9524AX BALANCER CAPACITY 50 - 60 kg STROKE 2700 mm9524AX BALANCER CAPACITY 50 - 60 kg STROKE 2700 mm9524AX
  • Capacity: 50 - 60 kg
  • Stroke: 2700 mm
9525AX BALANCER CAPACITY 60 - 70 kg STROKE 2700 mm9525AX BALANCER CAPACITY 60 - 70 kg STROKE 2700 mm9525AX
  • Capacity: 60 - 70 kg
  • Stroke: 2700 mm
ATX Balancer 9320AX - Capacity 1-2.5 kgATX Balancer 9320AX - Capacity 1-2.5 kgATX
  • Capacity: 1-2.5 kg
ATX Balancer 9321AX - Capacity 2-4 kgATX Balancer 9321AX - Capacity 2-4 kgATX
  • Capacity: 2-4 kg
ATX Balancer 9322AX - Capacity 4-6 kgATX Balancer 9322AX - Capacity 4-6 kgATX
  • Capacity: 4-6 kg
ATX Balancer 9323AX - Capacity 6-8 kgATX Balancer 9323AX - Capacity 6-8 kgATX
  • Capacity: 6-8 kg
ATX Balancer 9346LAX - Capacity 0.5-2 kgATX Balancer 9346LAX - Capacity 0.5-2 kgATX
  • Capacity: 0.5-2 kg
ATX Balancer 9346AX - Capacity 2-4 kgATX Balancer 9346AX - Capacity 2-4 kgATX
  • Capacity: 2-4 kg
ATX Balancer 9347AX - Capacity 4-6 kgATX Balancer 9347AX - Capacity 4-6 kgATX
  • Capacity: 4-6 kg
ATX Balancer 9348AX - Capacity 6-8 kgATX Balancer 9348AX - Capacity 6-8 kgATX
  • Capacity: 6-8 kg
ATX Balancer 9349AX - Capacity 8-10 kgATX Balancer 9349AX - Capacity 8-10 kgATX
  • Capacity: 8-10 kg
ATX Balancer 9350AX - Capacity 10-14 kgATX Balancer 9350AX - Capacity 10-14 kgATX
  • Capacity: 10-14 kg
ATX Balancer 9336LAX - Capacity 0.5-2 kgATX Balancer 9336LAX - Capacity 0.5-2 kgATX
  • Capacity: 0.5-2 kg
ATX Balancer 9336AX - Capacity 2-4 kgATX Balancer 9336AX - Capacity 2-4 kgATX
  • Capacity: 2-4 kg
ATX Balancer 9337AX - Capacity 4-6 kgATX Balancer 9337AX - Capacity 4-6 kgATX
  • Capacity: 4-6 kg
ATX Balancer 9338AX - Capacity 6-8 kgATX Balancer 9338AX - Capacity 6-8 kgATX
  • Capacity: 6-8 kg
ATX Balancer 9339AX - Capacity 8-10 kgATX Balancer 9339AX - Capacity 8-10 kgATX
  • Capacity: 8-10 kg
ATX Balancer 9340AX - Capacity 10-14 kgATX Balancer 9340AX - Capacity 10-14 kgATX
  • Capacity: 10-14 kg
ATX Balancer 9311AX - Capacity 0.4-1 kgATX Balancer 9311AX - Capacity 0.4-1 kgATX
  • Capacity: 0.4-1 kg
ATX Balancer 9312AX - Capacity 1-2 kgATX Balancer 9312AX - Capacity 1-2 kgATX
  • Capacity: 1-2 kg
ATX Balancer 9313AX - Capacity 2-3 kgATX Balancer 9313AX - Capacity 2-3 kgATX
  • Capacity: 2-3 kg
ATX Balancer 9310 - Capacity 0.2-0.5 kgATX Balancer 9310 - Capacity 0.2-0.5 kgATX
  • Capacity: 0.2-0.5 kg
ATX Balancer 9311 - Capacity 0.4-1 kgATX Balancer 9311 - Capacity 0.4-1 kgATX
  • Capacity: 0.4-1 kg

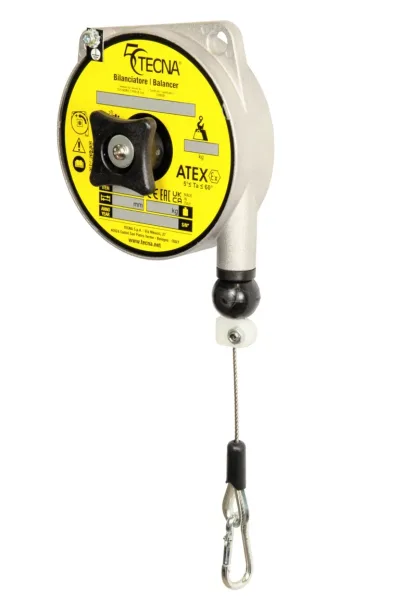

ATX Balancer 9312 - Capacity 1-2 kgATX Balancer 9312 - Capacity 1-2 kgATX
  • Capacity: 1-2 kg
ATX Balancer 9313 - Capacity 2-3 kgATX Balancer 9313 - Capacity 2-3 kgATX
  • Capacity: 2-3 kg
